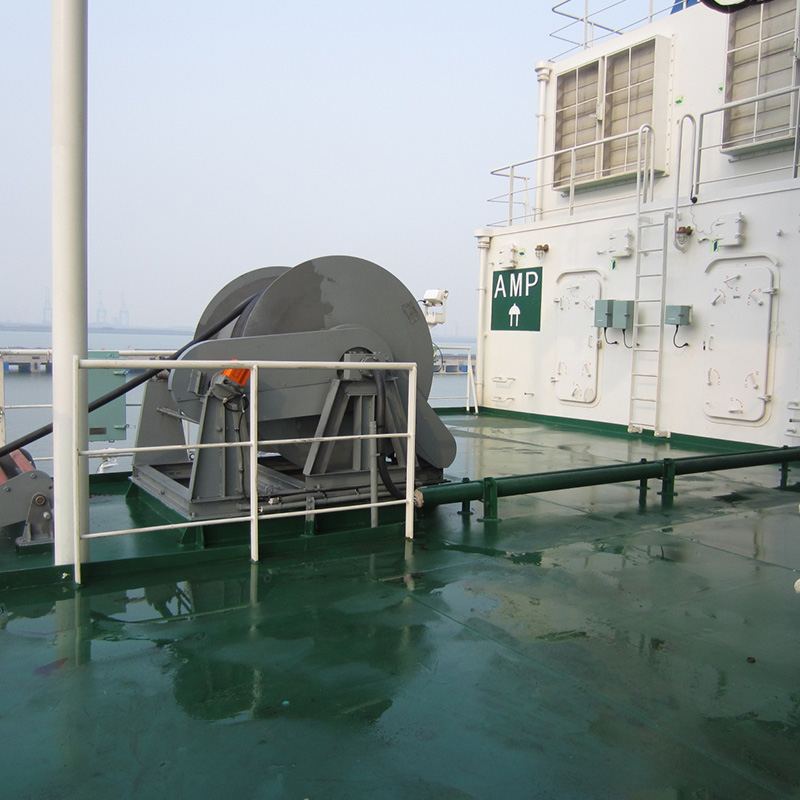

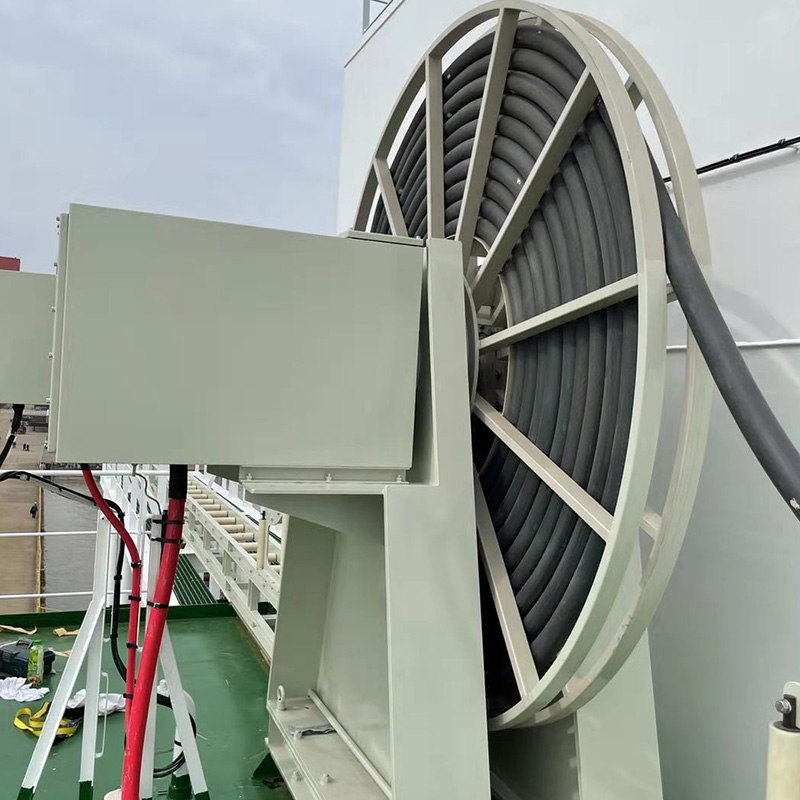

How do marine cable pulling winch suppliers design the drum of marine cable pulling winches?
The marine cable pulling winch is an indispensable and important equipment in the ship's power system. Its main function is to pull, retract and store the cable through the roller. As the core component of the winch, the design of the drum is not only related to the efficiency and safety of cable traction, but also directly affects the overall performance and service life of the winch. Therefore, suppliers of marine cable traction winches need to fully consider a variety of factors in drum design to ensure product quality and reliability.
The design of the drum first needs to take into account the specifications and characteristics of the cable. Different cables have different diameters, weights and tension requirements, which determine the diameter, length and material selection of the drum. Suppliers need to accurately calculate the geometric dimensions of the drum based on customer requirements and the technical parameters of the cable to ensure that the cable can be evenly distributed on the drum to avoid deflection or wear during the pulling process.
The material of the drum is also an important factor to consider during the design process. The roller needs to withstand the tension and friction of the cable, so it must have sufficient strength and wear resistance. Marine cable pulling winch suppliers usually choose high-strength, wear-resistant metal materials, such as high-quality alloy steel, to ensure the durability of the drum. At the same time, in order to reduce the friction coefficient of the roller and improve the efficiency of cable traction, the supplier will also perform special treatment on the surface of the roller, such as spraying a wear-resistant coating or polishing.
In addition, the structural design of the drum is also key. In order to ensure the stability of the cable on the drum and the even distribution of traction force, marine cable pulling winch suppliers usually adopt a multi-section or spiral drum structure. This structure can effectively disperse the tension of the cable and reduce the stress concentration of the drum, thus improving the load-bearing capacity and service life of the drum. At the same time, the supplier will also set up a cable guide device and a tension adjustment mechanism on the drum to ensure the stability and safety of the cable during the pulling process.
Finally, the safety protection of the drum is also an aspect that cannot be ignored in the design process. Suppliers will equip the drum with safety protection devices, such as protective covers, safety switches, etc., to prevent operators from being injured during maintenance or use. At the same time, the design of the drum also needs to comply with relevant safety standards and specifications to ensure product compliance and safety.
How do cable management system companies design modularity in cable management systems?
With the rapid development of information technology, cable management systems are increasingly used in various industries. The cable management system is not only related to the layout, maintenance and management of cables, but also directly related to the operational efficiency and cost control of the enterprise. Therefore, how to design an efficient and flexible cable management system has become an important topic for cable management system companies. As an advanced design concept, modular design provides strong support for the optimization of cable management systems.
Modular design refers to dividing the system into several independent functional modules. Each module has specific functions and interfaces. Through the combination and replacement of modules, the system can be flexibly configured and expanded. In cable management systems, modular design offers the following advantages:
Improve the maintainability of the system: The modular design makes each module relatively independent. When a module fails, only that module needs to be repaired or replaced without the need to modify the entire system.
Reduce the cost of the system: The modular design allows the cable management system to be customized according to actual needs, avoiding waste of resources. At the same time, due to the replaceability of modules, maintenance costs are also reduced.
Improve the flexibility of the system: The modular design allows the cable management system to easily respond to various changes. Through the addition, deletion and modification of modules, the system functions can be adjusted and optimized.
Steps in modular design of cable management systems
Functional requirements analysis: First, a comprehensive analysis of the functional requirements of the cable management system is required to clarify the functions and performance indicators that the system needs to achieve.
Module division: According to the results of functional requirements analysis, the cable management system is divided into several functional modules, such as cable layout module, fault detection module, data management module, etc.
Module design: Carry out detailed design for each functional module, including the structure, function, interface, etc. of the module. Ensure that each module is independent and replaceable.
Module development and testing: Carry out module development and testing according to the requirements of module design. Make sure each module works as expected and coordinates well with other modules.
System integration and debugging: Integrate all modules to form a complete cable management system. Conduct comprehensive debugging and optimization of the system to ensure that the system can operate stably and efficiently.
Considerations for modular design
The interface design between modules should be standardized and unified to facilitate module replacement and upgrade.
The design of the module should fully consider future scalability to adapt to changing market demands and technological developments.
During the module development process, attention should be paid to the quality and maintainability of the code to improve the stability and reliability of the system.
